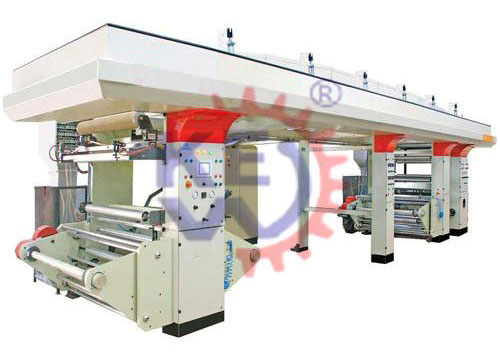

High Speed
Coating Machine


Slitting Rewinding
Machine

 Manual Slitting Rewinding Machine
 Semi Automatic Slitting Rewinding Machine
 Fully Automatic High Speed Slitting Rewinding Machine

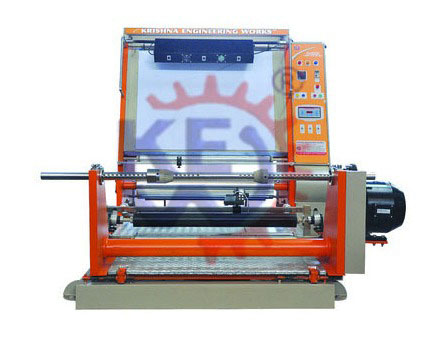

High Speed
Inspection Rewinding
Machine


High Speed
Doctoring Rewinding
Machine

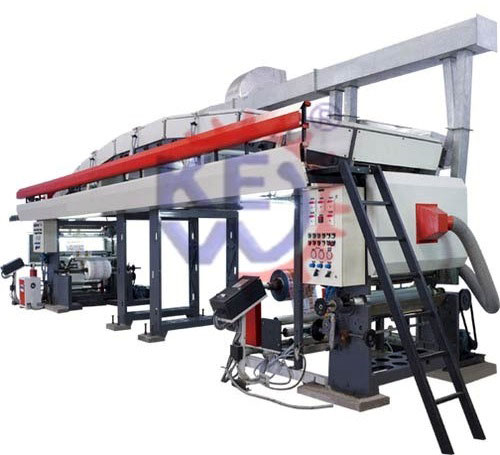

Lamination Machine




Lamination Machine

KEW manufactures, exports & supply Lamination Machine which laminates various types of materials like Plastic, Paper, LDPE, BOPP, etc. from Ahmedabad, Gujarat, India.


We have been successfully manufacturing, exporting & supplying all types of Lamination Machine since last 25 years from Ahmedabad, Gujarat, India. We are winner of 3 times National Award and 2 times International Award for Quality manufacturing. For Lamination Machine, we have processed all types of material like Polyester, BOPP, LD, PVC, Paper, Film, etc. We have more than 100 installation of Lamination Machine in India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc.


The Principle

Film Laminating Machine use polyester (PET) film as its base film, adhesive (EVA resin) is evenly applied on one side of the polyester (PET) film. After special processing, it turned into advanced packing material, and it is widely used for the laminating and protection of material like identification card, historical accounts, photos, pictures, credit cards and important documents. After laminating, the material has the unique function like water resistance, alteration resistance, damp resistance, worm resistance and mildew resistance on general acid-base. What's more, it is stiff, smooth and pleasing to one's eyes, since it has good transparency.


The Use

Laminated materials are widely used for Plastic & Paper Materials like Milk Pouches, Food Packets, Wafer Pouches, Cloth Bags, etc. Our Lamination Machine are used for Laminating above all types of materials.


KEW offers High Speed Industrial Laminating Machine with great accuracy and organized performance. The machine is easy to handle, install and operate.


Type of Laminating Machine:
  • Dry Laminating Machine
  • Wet Laminating Machine
  • Heat Laminating Machine
  • Sheet Laminating Machine
  • Roll Laminating Machine

SALIENT FEATURES:
  • Heavy duty C.I. Cast iron & Heavy fabricated structure.
  • Gravure type coating system.
  • Cantilever type impression pressure assembly actuated with pneumatic piston for rubber roll Doctor Blade and Nip Roller.
  • Fully insulated imported special glass wool sheet fitted in the panel (Top side & Bottom) for controlling heat loss.
  • One & One Slit type counter air flow arrangement, Divided equally are placed against roller for proper web support.
  • Exhaust are distributed through-out the length of drying chamber & individual exhaust duct for each zone.
  • Digital temperature controller with indicator & PT 100 sensor for each Zone.
  • Inside heating for Nip Steel roller.
  • Heavy duty Shaft types fix Rewinder with motor.
  • KEW SRA Web system for controlling the Web after the drying tunnel & two web for primary & Secondary unwind.

EXAMPLE OF COATING METHODS
  • Top nip fed three roll reverse roll coater
  • Gravure reverse roll coater
  • Gravure roll coating with oscillating doctor blade
  • Reverse roll coating with nip feed
  • Kiss coating with air knife
  • Kiss coating with Mayer bar
  • Five roll (smooth) coating

Technical Specifications:
  • Web Width : 400 – 2400mm
  • Unwind Rewind Diameter : 600 - 1000mm
  • Hot Air Temp : 50 – 150 / 250°C
  • Machine Speed : 60 – 200 M/Min.
  • Heat Source : Hot Air Generator (Optional)
  • Exhaust : 5 HP
  • Synchronized Drive : 5 HP/5 / 7.5,10 / 3 HP for Coater, Nip, Rewind & Positive Drive (Optional)
  • Material to be Laminated : Polyester/Poly/Paper/BOPP/Aluminum Foil/HDPE Fabrics etc.

UNWIND STATION:
  • Tension control Brake Unit with load cell feedback (Electrical/Pneumatic).
  • Moveable unwind with web guide.

COATING UNIT:
  • Independent A.C. Drive.
  • Pre – Heating / Exhaust.

DRYING CHAMBER:
  • Load cell feedback for coating & Nip.
  • Pneumatic lifting of top door.
  • Cat walk for full length drying chamber.
  • Programmable Temperature Control.
  • Positive tunnel drive.

HOT AIR GENERATOR:
  • Diesel / Coal or Wood Fired Air Heater / Thermic fluid Heater with Blower.

DRY LAMINATING UNIT:
  • Web Chaser

REWIND STATION:
  • A. C. synchronize Drive with Load cell.
  • Center winding system/ Surface.

OPTIONAL ATTACHMENT:
  • Air Shaft
  • Pull roll assembly ( In feed drive )
  • May bar / Reverse roll, Air knife Three roll.
  • Wet Lamination arrangement.
  • Extra blower & Exhaust Individual for each zone.
  • Chill Roll.
  • Bow Roller.
  • Ink Circulating with Viscosity Control.
  • Touch Screen Operated control for all drive.
